Galvanized Barbed wire

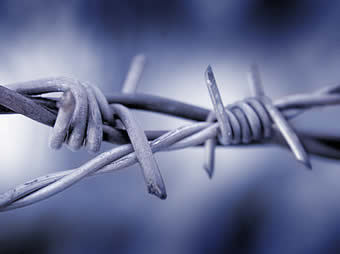

Jinghua Barbed Wire Machine Factory produces Galvanized Barbed Iron Wire in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).

Galvanized Barbed Iron Wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.

Patterns Available for Galvanized Barbed Wire:
Single Twisted Barbed Wire
Double Twisted Barbed Wire
Traditional Twisted Barbed Wire

Features: Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

Packing: In coils.



Gauge of
Strand and Barb in B.W.G.
Approximate Length per Kilo in Meter
Barbs Spacing 3" Barbs Spacing 4" Barbs Spacing 5" Barbs Spacing 6"
12x12 6.0617 6.7590 7.2700 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.7190 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.5620
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.6590 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.5070
15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386
